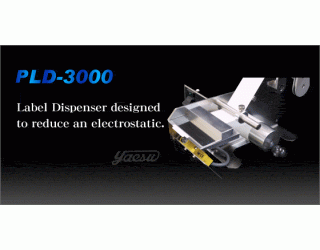

This is the first ESD label dispenser in the world.
By earthing the body and using ESD labels, we are able to reduce the static voltage to be less than 25 volts and for the body to be less than 5 volts.
Enable to cut from 4 x 4 mm extremely small ESD label to a thick security label.
It is easy to adjust the photo sensor for different types of label.
Very compact design perfectly fits cell-system.
Stainless body enabled to be used in ESD and clean room.
Scrap winder can remove scrap automatically.
Label Length
4 – 100mm
Width of Label Mount
4 – 75mm
Sending Speed
8.3 mm/sec. (min) 14mm/sec. (max)
Stop Error Margin
0.14mm(min) 0.314mm(max)
Size
192 x 170 x 253mm (W x H x D)
Weight
3.1kg
*Because of the motor’s characteristics, the standstill point will differ if scrap builds up.
Q: What is different from PLD-3000? A: HLD-2000 has the fastest feeding speed in the world. On the other hand, PLD-3000 is able to cut extremely small size (4 x 4 mm) of labels.
Q: Can you customize this machine to have fasten speed? A: Yes, we can raise the performance speed about 20% more. However, removing small labels would be difficult in this circumstances, since it requires accurate place.
Q: Is it possible to use the tape that has more than 180 mm in outside diameter? A: Yes it is. You can use up to 200 mm by attaching the plastic stopper.
Q: Is it possible to read a clear label? A: Some of the clear labels may be readable, but it would be rare.
