Description

This package system can transfer wafers mounted on tape frames.

Features for single film frame shipper

• Non-contact with wafer surface
• Single wafer with a tape frame can be carried
• Uses a clean conductive material (conductive polymer)
• Optimal for transporting test production wafers
• ESD safe
• Material: Conductive A-PET
• Surface resistance value: R < 10^7 Ω
• Product size: 1.7mm × 250mm × 250mm, 0.17kg

Available sizes for single film frame shipper

• 150mm Single Film Frame Shipper (6inch)
• 200mm Single Film Frame Shipper (8inch)
• 300mm Single Film Frame Shipper (12inch)

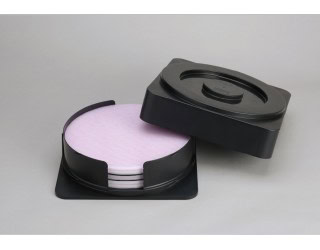

Features for multiple film frame shipper

• Made from low particles / ionic / outgassing material
• Lightweight when used with Protos Frames (sold separately)
• ESD safe / Conforms to ANSI / ESD S541
• Compatible with automatic wafer packing equipment
• Material: PP (Polypropylene) carbon included
• Surface resistance value: R < 10^6 Ω
• Wafer storage diameter: 299±1mm
• Height of storage: 57.0mm
• Product size: 92mm × 322mm × 322mm, 1.03kg

Available sizes for multiple film frame shipper

• 150mm Multiple Film Frame Shipper (6inch) – for storage of 13 wafers
• 200mm Multiple Film Frame Shipper (8inch) – for storage of 13 wafers
• 300mm Multiple Film Frame Shipper (12inch) – for storage of 13 wafers
• 300mm Multiple Film Frame Shipper (12inch) – for storage of 25 wafers
