Description
From our history of extensive development and pursuit of screen printing technology, Micro-tec firmly believes that bleeding can be substantially reduced with the use of Pre-Contact Squeegees. (option) The Pre-Contact Squeegees helps pressing the screen to be contact with the substrate before actual printing takes place which results in substantially decreased bleeding.

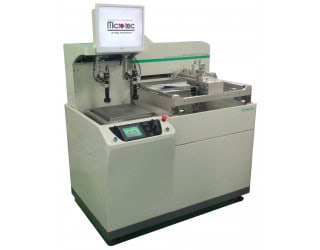

The MT-650 series low-pressure printing machine can be equipped with Pre-Contact Squeegees UP-Down mechanism that is placed in front of both sides of the main squeegee. This positioning supports the Pre-Contact printing with little effort.
By changing the squeegee holder attachment, the MT-650 series can be equipped with both the double squeegee and Pre-contact Squeegee enabling to print solder paste without bleeding.
Specification:
| Maximum printing area | 250 mm x 250 mm (Approx) |
| Screen frame | 550 mm x 550 mm (outside)
450 mm x 450 mm (outside) 550 mm x 650 mm (outside) |
| Table size | 360 mm x 360 mm (standard)
230 mm x 230 mm (option) |
