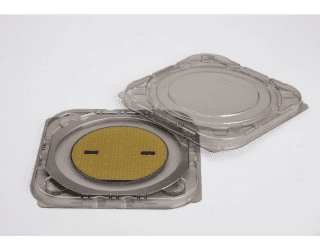

Description

Features

• Uses a clean conductive material (ST-poly).
• By holding wafer edge, there is no contact with the surface of wafer.
• Optimal for transporting test production wafers.
• Conforms to ANSI / ESD S541.

Specification

Compatible wafer size:       150mm or 6inch

Capacity:                             1 wafer

Material:                              Conductive PC / clip: conductive PP

Dimension:                          21mm × 317mm × 317mm

Weight:                                0.8kg

Wafer storage diameter:      302+0.5/-1.5mm

Wafer storage height:          0.9mm

Surface resistance:             R < 10^7 Ω

Carton dimension:              10 cases/carton (355mmx355mmx235mm, 17.4kg)
